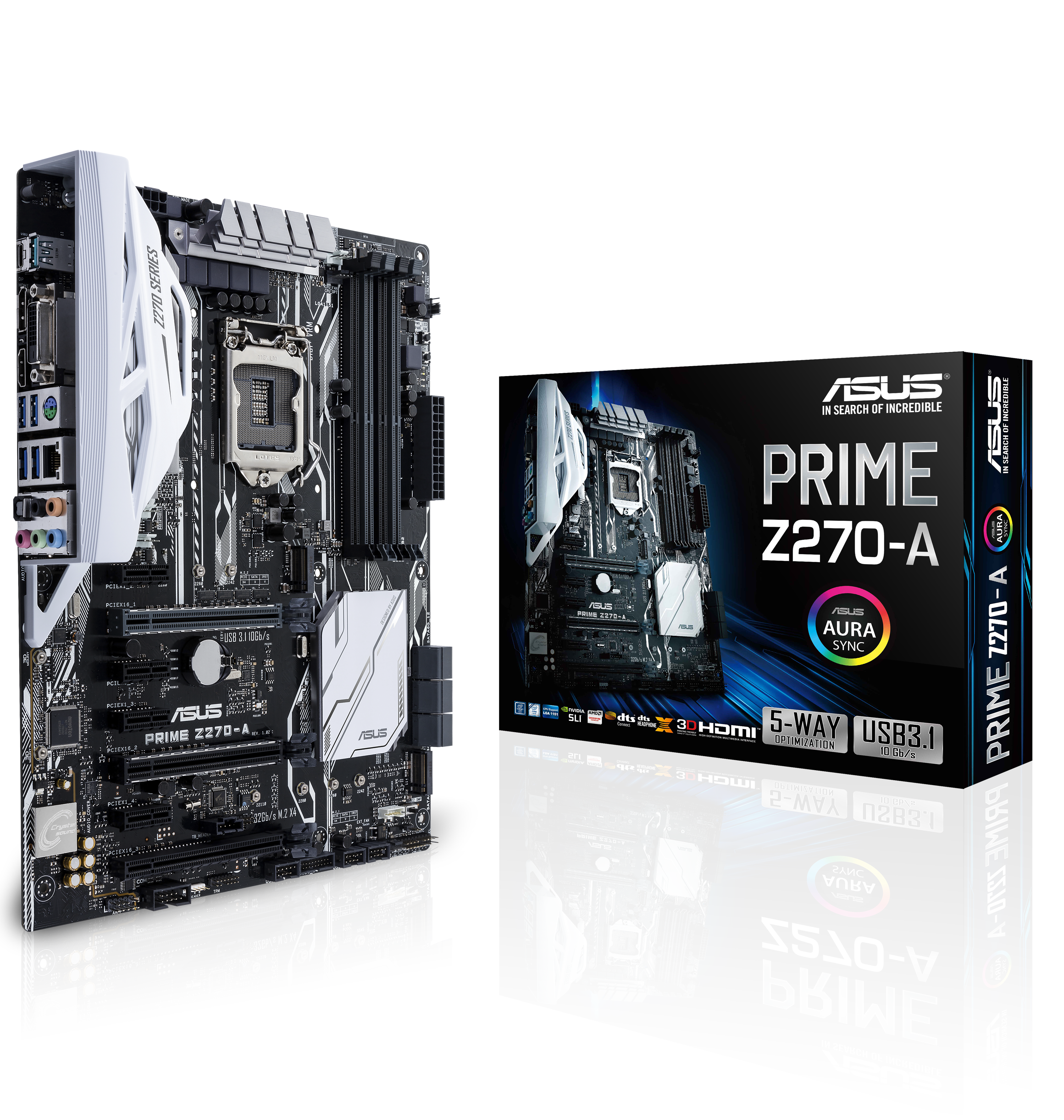

ASUS Intel Z270 PRIME - ATX · Reconditionné
Carte mère ATX - Socket INTEL LGA 1151 - Chipset Intel Z270
| CPU | LGA1151 socket for 7th & 6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron Processors |
| Supports 14nm CPU | |
| Supports Intel Turbo Boost Technology 2.0* | |
| * The Intel Turbo Boost Technology 2.0 support depends on the CPU types. | |
| Chipset | Intel Z270 Chipset |
| Mémoire | 4 x DIMM, max. 64GB, DDR4 3866(O.C.)*/ 3733(O.C.)*/3600(O.C.)*/3466(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666(O.C.)*/2400(O.C.)*/2133 MHz, non-ECC, un-buffered memory |
| Dual channel memory architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| * Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details. | |
| Emplacements d'extension | 2 x PCI Express 3.0/2.0 x16 slots (single at x16 or dual at x8/x8 mode) |
| 1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices) | |
| 4 x PCI Express 3.0/2.0 x1 slots | |
| VGA | Integrated Graphics Processor- Intel HD Graphics support |
| Multi-VGA output support: DisplayPort/HDMI/DVI-D ports | |
| Supports DisplayPort 1.2* with max. resolution 4096 x 2304@24Hz | |
| Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz | |
| Supports DVI-D with max. resolution 1920 x 1200@60Hz | |
| Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/Insider | |
| Supports up to 3 displays simultaneously | |
| Maximum shared memory of 1024MB | |
| * DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays | |
| Support Multi-GPU | Supports NVIDIA 2-Way/Quad-GPU SLI Technology (with 2 PCIex16 graphics card) |
| Supports AMD 3-Way/Quad-GPU CrossFireX Technology | |
| Stockage | Intel Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support* |
| - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)** | |
| - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)*** | |
| - 6 x SATA 6.0 Gb/s ports (gray) | |
| - Ready for Intel Optane Memory**** | |
| - Supports Intel Smart Response Technology***** | |
| * Supports PCIE RAID configurations via onboard M.2 storages. | |
| ** The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device. | |
| *** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use M.2 PCIE devices in X4 mode. | |
| **** Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website. | |
| ***** These functions will work depending on the CPU installed. | |
| LAN | Gigabit Intel LAN connection- 802.3az Energy Efficient Ethernet (EEE) appliance |
| Intel I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY) | |
| ASUS LAN Guard | |
| ASUS Turbo LAN Utility | |
| Audio | Realtek S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3 |
| - Power pre-regulator reduces power input noise to ensure consistent performance | |
| - Separate layer for left and right track, ensuring both sound deliver equal quality | |
| - Impedance sense for front and rear headphone outputs | |
| - Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference | |
| - EMI protection cover to prevent electrical noise to affect the amplifier quality | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Unique de-pop circuit to reduce start-up popping noise to audio outputs | |
| - Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity | |
| - High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support | |
| - Supports up to 32-Bit/192kHz playback* | |
| - DTS Headphone:X | |
| - DTS Connect | |
| - Supports jack-detection, multi-streaming, front panel jack-retasking (MIC) | |
| - Optical S/PDIF out port at back I/O | |
| *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio | |
| USB | Intel Z270 Express Chipset |
| - 6 x USB 3.0/2.0 ports (2 ports @mid-board, 4 ports @back panel, blue) | |
| - 6 x USB 2.0/1.1 ports (6 ports @mid-board) | |
| Asmedia USB 3.1 controller - supports 3A power output | |
| - 1 x USB 3.1/3.0/2.0 port @back panel (teal blue, Type-A) | |
| - 1 x USB 3.1/3.0/2.0 port @back panel (Type-C) | |
| Caractéristiques exclusives | <Superb Performance> |
| OC Design: ASUS PRO Clock Technology | |
| - Full BCLK range for extreme overclocking performance. | |
| 5-Way Optimization | |
| - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages. | |
| DIGI+ Power Control | |
| -CPU Power: Digital 8-phase power design | |
| -iGPU Power: Digital 2-phase power design | |
| TPU | |
| - Auto Tuning, GPU Boost | |
| EPU | |
| - EPU | |
| Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control | |
| Turbo App featuring system performance tuning, network priority, and audio scene configuration for selected applications. | |
| UEFI BIOS | |
| CrashFree BIOS 3 | |
| EZ Flash 3 | |
| EZ Tuning Wizard | |
| GPU Post | |
| S.M.A.R.T. | |
| Secure Erase | |
| Special Memory O.C. Design | |
| - Superb memory O.C. capability under full load by minimizing the coupling noise and signal reflection effect | |
| <Connectivity> | |
| 32Gb/s M.2 onboard - PCIe 3.0 x4 | |
| Intel Thunderbolt 3 Support | |
| - Blistering-fast 40Gb/s data transfers upgrades with ThunderboltEX 3 Card. | |
| <EZ Management> | |
| File Transfer | |
| - Cloud GO! | |
| - File Transfer | |
| PC Cleaner | |
| - Fast and easy way to get rid of unnecessary junk files | |
| <Gaming> | |
| AURA | |
| - Bright up your Build | |
| 3D Printing Support | |
| - Make it your own. The new era of PC customization | |
| Turbo LAN | |
| - Fast and smooth online gaming with lower pings and less lags | |
| Turbo APP | |
| - Tailored app performance, network priority and audio configuration for your needs | |
| <EZ DIY> | |
| CPU Installation Tool | |
| - Three-step simplicity and safety | |
| Q-Design | |
| - ASUS Q-Shield | |
| - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) | |
| - ASUS Q-Slot | |
| - ASUS Q-DIMM | |
| - ASUS Q-Connector | |
| Fonctions spéciales ASUS | Special Features: |
| ASUS SafeSlot - Protect your graphics card Investment | |
| ASUS 5X Protection III | |
| - ASUS SafeSlot Core - Fortified PCIe with solid soldering | |
| - ASUS LANGuard - Protects against LAN surges, lightning strikes and static-electricity discharges! | |
| - ASUS Overvoltage Protection - World-class circuit-protecting power design | |
| - ASUS DIGI+ VRM - 8+2 Phase digital power design | |
| - ASUS DRAM Overcurrent Protection: Enhanced DRAM overcurrent protection | |
| - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! | |
| - ASUS ESD Guards - Enhanced ESD protection | |
| - AI Suite 3 | |
| - Ai Charger | |
| - MemOK! | |
| Solution thermique silencieuse ASUS | Quiet Thermal Design: |
| - ASUS Fan Xpert 4 | |
| - ASUS Fanless Design: Heat-sink solution | |
| Caractéristiques exclusives d'overclocking ASUS | Precision Tweaker 2: |
| - CPU Core/Cache Voltage: Adjustable CPU Core/Cache Voltage at 0.005V increment | |
| - CPU Graphics Voltage: Adjustable CPU Graphics voltage at 0.005V increment | |
| - CPU VCCIO Voltage: Adjustable CPU VCCIO Voltage at 0.0125V increment | |
| - CPU System Agent Voltage: Adjustable CPU System Agent Voltage at 0.0125V increment | |
| - DRAM Voltage: 152-step Memory voltage control | |
| - PCH Core Voltage: 110-step Chipset voltage control | |
| SFS (Stepless Frequency Selection) | |
| - BCLK/PCIE frequency tuning from 40MHz up to 500MHz at 0.01MHz increment | |
| Overclocking Protection: | |
| - ASUS C.P.R.(CPU Parameter Recall) | |

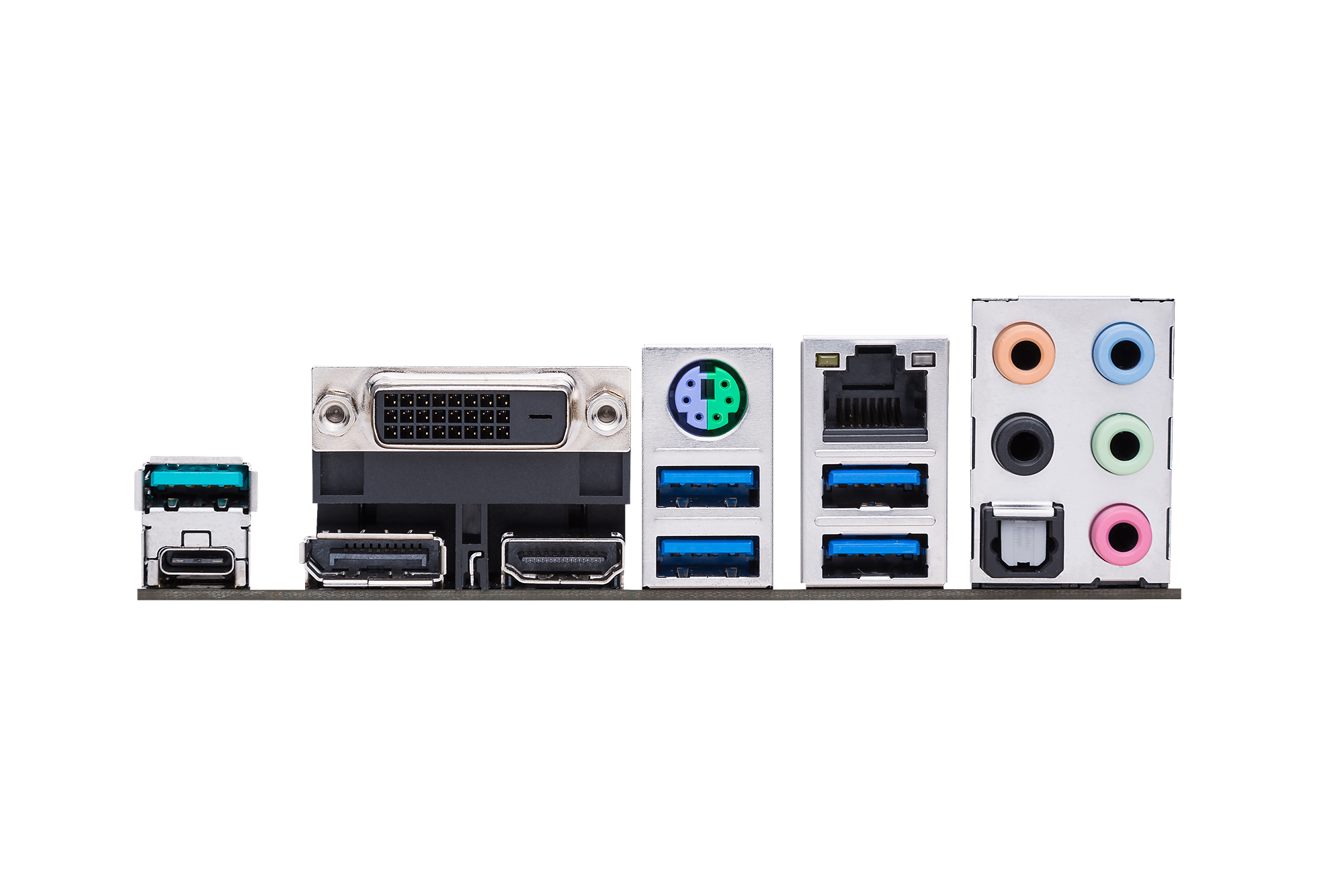

| Panneau arrière I/O | 1 x DisplayPort |
| 1 x HDMI port | |
| 1 x DVI-D | |
| 1 x Optical S/PDIF out | |
| 1 x Intel LAN (RJ45) port | |
| 1 x USB 3.1/3.0/2.0 ports (teal blue, Type A) | |
| 1 x USB 3.1/3.0/2.0 ports (Type C) | |
| 4 x USB 3.0/2.0 ports (blue) | |
| 8-channel Audio I/O ports | |
| Connecteurs internes I/O | 1 x USB 3.0/2.0 connectors support additional 2 USB ports (19-pin) |
| 3 x USB 2.0/1/1 connectors support additional 6 USB ports | |
| 1 x M.2 Socket 3 (for M Key, type 2242/2260/2280 devices, PCIE mode) | |
| 1 x M.2 Socket 3 (for M Key, type 2242/2260/2280/22110 devices, PCIE & SATA mode) | |
| 6 x SATA 6.0Gb/s connectors (gray) | |
| 1 x CPU Fan header (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) CPU coolers control with auto detection support | |
| 1 x CPU OPT Fan header (4-pin) | |
| 1 x AIO Pump header (4-pin) | |
| 1 x High AMP Fan header (4-pin) | |
| 2 x Chassis Fan connectors (4-pin) for both 3-pin(DC mode) and 4-pin(PWM mode) coolers control with auto detection support | |
| 1 x Aura RGB Strip header | |
| 2 x 3D Mount screw ports | |
| 1 x Front panel audio connector (AAFP) | |
| 1 x Thunderbolt header (5-pin) for ASUS ThunderboltEX series support | |
| 1 x TPM connector | |
| 1 x COM connector | |
| 1 x 24-pin EATX Power connector | |
| 1 x 8-pin EATX 12V Power connector | |
| 1 x System Panel(Q-Connector) | |
| 1 x MemOK! button | |
| 1 x Power-on button | |
| 1 x CPU OV jumper | |
| 1 x Clear CMOS header | |
| 1 x Thermal Sensor header | |
| 1 x EZ XMP switch | |
| 1 x 5-pin EXT_FAN(Extension Fan) connector | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information. |
| Gestion | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| Accessoires | 3 x Serial ATA 6.0Gb/s cables |
| 1 x SLI HB BRIDGE(2-WAY-M) | |
| 1 x ASUS Q-Shield | |
| 1 x Q-connector | |
| 1 x M.2 screw package | |
| 1 x CPU Installation Tool | |
| 1 x user's manual | |
| Support DVD | Drivers |
| ASUS Utilities | |
| EZ Update | |
| Anti-virus software (OEM version) | |
| Prise en charge du système d'exploitation | Windows 10 64-bit |
| Windows 8.1 64-bit* | |
| Windows 7* | |
| *Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors | |
| Format | ATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm) |
Informations logistiques :
Destination livrable : France (métropolitaine).
Informations générales |
Désignation |
ASUS Intel Z270 PRIME - ATX · Reconditionné |
Marque |
ASUS | |
Modèle |
90MB0RU0-M0EAY0 | |
Principales caractéristiques |
Modèle de carte mère |
PRIME |
Processeur |
Support du processeur |
Intel 1151 |
Nombre de CPU supportés |
1 | |
Chipset |
Marque du chipset |
Intel |
Chipset |
Intel Z270 Express | |
Mémoire |
Format de mémoire |
4 X DIMM 288 pins (DDR4) |
Fréquence(s) Mémoire |
DDR4 3866 MHz | |
| DDR4 3733 MHz | ||
| DDR4 3600 MHz | ||
| DDR4 3466 MHz | ||
| DDR4 3400 MHz | ||
| DDR4 3333 MHz | ||
| DDR4 3300 MHz | ||
| DDR4 2133 MHz | ||
| DDR4 2400 MHz | ||
| DDR4 2666 MHz | ||
| DDR4 2800 MHz | ||
| DDR4 3000 MHz | ||
| DDR4 3200 MHz | ||
Type de mémoire |
DDR4 | |
Technologie mémoire |
Dual Channel | |
Capacité maximale de RAM par slot |
16 Go | |
Capacité maximale de RAM |
64 Go | |
Graphique |
Contrôleur graphique intégré |
Non |
Slots d'extension |
Connecteur(s) graphique |
1 X PCI Express 3.0 16x |
| 1 X PCI Express 3.0 16x (4x) | ||
| 1 X PCI Express 3.0 16x (8x) | ||
Nombre et Type de slots |
4 X PCI Express 1x | |
Type de multi-GPU |
CrossFireX | |
| SLI | ||
Compatibilité mécanique (PCI-E) |
3 X PCI-Express 16x | |
Audio |
Chipset Audio |
Realtek ALC1220 |
Nombre de canaux audio |
8 | |
Réseau |
Nombre de ports/Contrôleur Ethernet |
Intel I219-V |
Norme(s) réseau |
10/100/1000 Mbps | |
Stockage |
RAID supporté |
Oui |
Connecteurs Disques |
1 X M.2 - PCI-E 3.0 4x | |
| 1 X M.2 - PCI-E 3.0 4x + SATA 6 Gb/s | ||
| 6 X Serial ATA 6Gb/s (SATA Revision 3) | ||
Unité(s) de stockage max. |
6 | |
Modes RAID supportés |
0 | |
| 10 | ||
| 5 | ||
| 1 | ||
Connectique |
Connecteurs panneau arrière |
1 X HDMI Femelle |
| 1 X DVI Femelle | ||
| 1 X DisplayPort Femelle | ||
| 1 X USB 3.1 Type C Femelle | ||
| 1 X USB 3.1 | ||
| 4 X USB 3.0 | ||
| 1 X RJ45 Femelle | ||
| 1 X MiniDin 6 Femelle (PS/2) | ||
| 1 X Audio numérique S/PDIF Optique | ||
| 5 X Jack 3,5mm Femelle Stéréo | ||
Connecteurs additionnels |
1 X TPM | |
| Audio panneau avant | ||
| 1 X +12V (Alimentation P8) | ||
| 1 X ATX 24 Broches | ||
| 1 X Série (RS-232) | ||
| 6 X USB 2.0 interne | ||
| 2 X USB 3.0 interne | ||
Nombre de port HDMI |
1 | |
Nombre de connecteurs pour ventilateurs |
2 | |
Caractéristiques physiques |
Format de carte mère |
ATX |
Longueur |
305 mm | |
Largeur |
244 mm | |
LED |
Non | |
Garanties |
Garantie légale |
Voir les modalités
|
Nos marques
Meilleures ventes
MSI MPG B550 GAMING PLUS
- Carte mère ATX - Socket AM4 - AMD B550 - 4 x DDR4 - M.2 PCI-E 4.0 4x + SATA 6 Gb/s - USB 3.1 - PCI-Express 4.0 16x
115,99€
Gigabyte B760 GAMING X DDR4 GEN5
- Carte mère ATX Socket 1700 Intel B760 Express - 4x DDR4 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 5.0 16x - 2.5 GbE
129,99€
Gigabyte B550M GAMING X WIFI6
- Carte mère Micro ATX Socket AM4 AMD B550 - 4 x DDR4 - SATA 6Gb/s + M.2 - USB 3.0 - PCI-Express 4.0 16x - Wi-Fi 6/Bluetooth 5.3
114,99€
Gigabyte B550 AORUS Elite V2
- Carte mère ATX - Socket AM4 - AMD B550 - 4x DDR4 - SATA 6Gb/s + M.2 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE
122,99€
ASRock B450M Pro4 R2.0
- Carte mère micro-ATX Socket AM4 AMD B450 - 4x DDR4 - M.2 PCIe 3.0 - USB 3.1 - PCI-Express 3.0 16x
170,00€
ASUS TUF GAMING B560M-PLUS - Reconditionné
- Carte mère - Socket LGA 1200 - Chipset Intel B560
159,99€
99,74€
-37%
MSI PRO H610M-E DDR4
- Carte mère Micro ATX Socket 1700 Intel H610 Express - 2x DDR4 - M.2 PCIe 3.0 - USB 3.0 - PCI-Express 4.0 16x
65,99€
MSI B760 GAMING PLUS WIFI DDR4
- Carte mère ATX Socket 1700 Intel B760 Express - 4x DDR4 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE + Wi-Fi 6E/Bluetooth 5.3
179,99€
158,11€
-12%
ASUS TUF GAMING B660-PLUS WIFI D4
- Carte mère ATX - Socket 1700 - Intel B660 Express - 4x DDR4 - M.2 PCIe 4.0 - USB 3.2 - PCI-Express 4.0 16x - LAN 2.5 GbE + Wi-Fi 6 AX
128,99€
ASUS TUF GAMING B550-PLUS WIFI II
- Carte mère ATX Socket AM4 - AMD B550 - 4x DDR4 - M.2 PCIe 4.0 - PCI-Express 4.0 16x - LAN 2.5 GbE + Wi-Fi 6 AX
149,99€
ASUS TUF GAMING B760-PLUS WIFI D4
- Carte mère ATX - Socket 1700 - Intel B760 Express - 4 x DDR4 - M.2 PCIe 4.0 4x - USB 3.2 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 6 AX/Bluetooth 5.2
176,86€
MSI PRO B760 P WIFI DDR4
- Carte mère ATX - Socket 1700 - Intel B760 Express - 4x DDR4 - M.2 PCIe 4.0 - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE - Wi-Fi 6E/Bluetooth 5.3
151,15€
MSI B850 GAMING PLUS WIFI
- Carte mère ATX Socket AM5 AMD B850 - 4x DDR5 - M.2 PCIe 5.0 - USB 3.1 - PCI-Express 5.0 16x - LAN 5 GbE - Wi-Fi 7
209,99€
Gigabyte B850 GAMING WIFI6
- Carte mère ATX Socket AM5 AMD B850 - 4x DDR5 - M.2 PCIe 5.0 - USB 3.1 - PCI-Express 5.0 16x - Wi-Fi 6
162,88€
157,99€
-3%
ASUS TUF GAMING B550-PLUS
- Carte mère ATX - Socket AM4 - AMD B550 - 4 x DDR4 - M.2 PCI-E 4.0 4x + SATA 6 Gb/s - USB 3.1 - PCI-Express 4.0 16x - LAN 2.5 GbE
139,99€
Produits similaires
Tendances actuelles :
Dans la même thématique :
carte mere lga 1151
| z270
Détails des notations :
ASUS Intel Z270 PRIME - ATX · Reconditionné
Charte de rédaction et de modération
4 avis :
Le 09/08/2020
Bonjour, J'ai acheter cette carter mère le 11/03/2017 mais elle ne fonctionne les ventilateurs et les led fonctionne mais aucun signal sur mon écran je l'ai emmené chez un réparateur de pc et il ma dit que s'est la carte mère qui a un default. J'ai contacter ASUS pas mail et ils mon vite répondus 'bon SAV' mais il faut passer par Rue Du Commerce pour la reparation, que j'ai contacté par telephone et ils mon envoyés le bon de retour aussi-tot . Pour le SAV Rue Du Commerce je leurs met 5/5 ça fait 4 années que j’achète sur rue du commerce et je vais continuer d'acheter chez eux les yeux fermés très bon site de ventes.Pour un avis sur la Z270-A je le mettrais quand je l'aurai reçu après la reparation.
Acheté le 11/03/2017 chez ZOOMICI
Le 27/07/2020
Très bon produit , installation rapide , fonctionnalité intéressante.
Acheté le 04/07/2019 chez ZOOMICI
Le 02/05/2020
Fournie dans un kit evo, carte de qualité. Asssociée avec un kit water cooling et un i7-7700k. Enorme surprise, un bios uefi super et EN Français. Sur le site asus on trouve un manuel trés explicite en Français également. On pourrait passer des heures à l'explorer. Tous les logiciels pour gérer tout çà, ventils, overclocking etc.. Dommage pas de vis pour fixer la carte mere sur le chassis. A acheter sans hésiter.
Le 22/09/2017
c est beau c propre ca fonctionne sans soucis facile à monter
