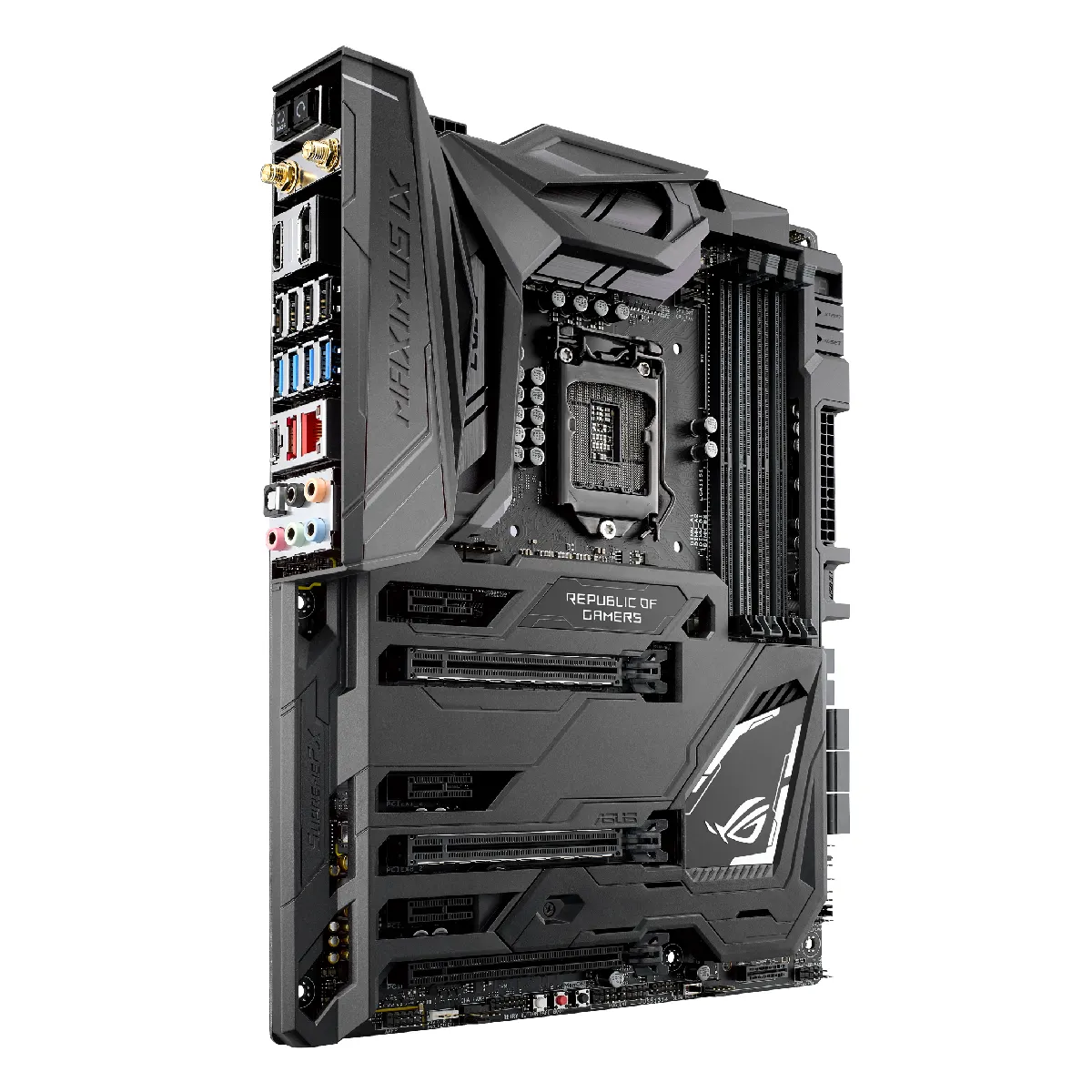

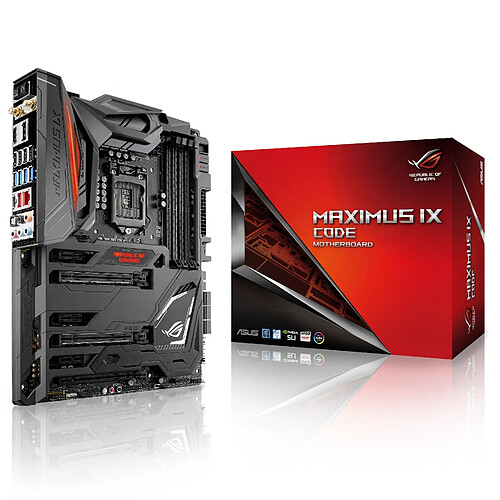

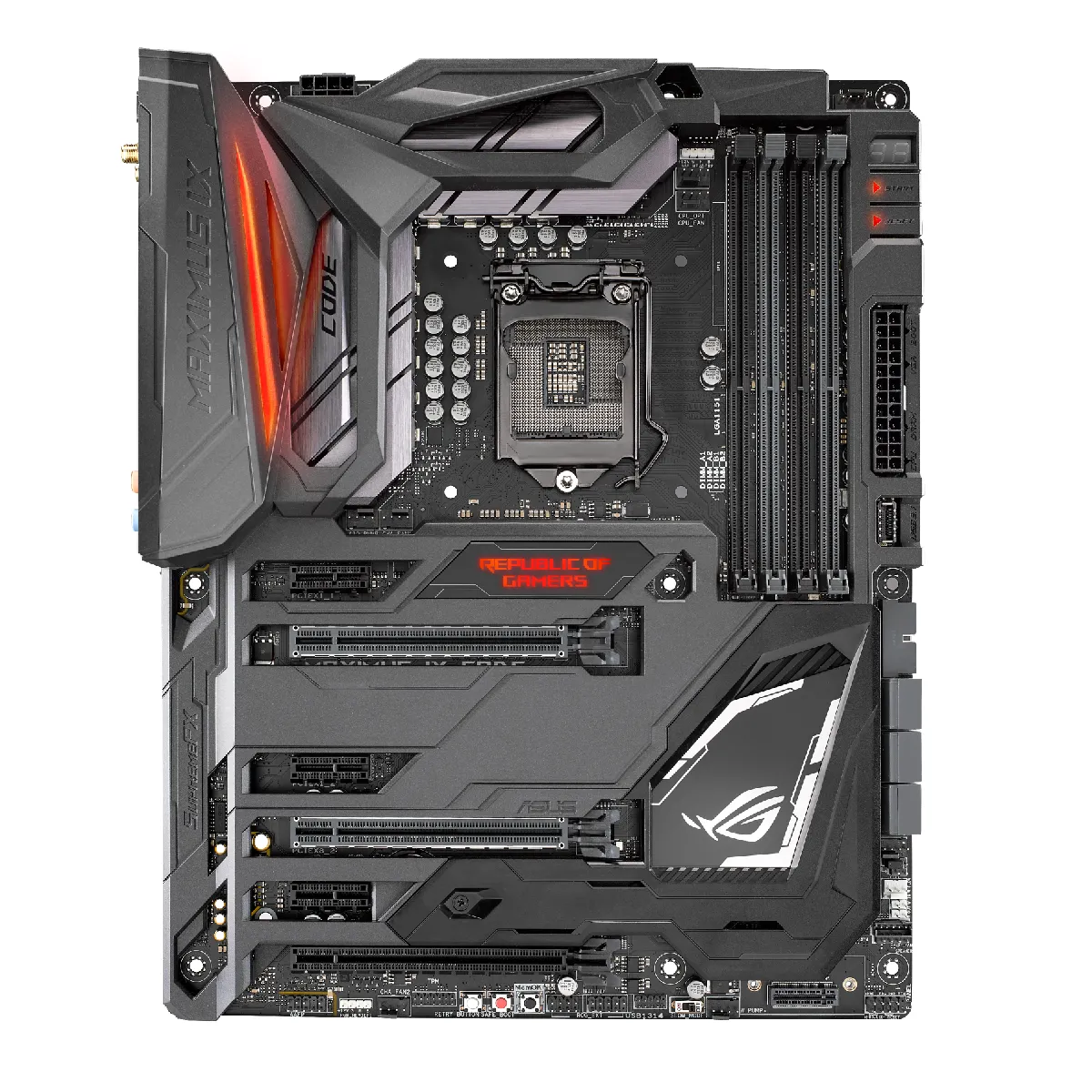

ASUS Intel Z270 MAXIMUS IX CODE · Reconditionné



CPUIntel Socket 1151 for 7th / 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost Technology 2.0**Intel Turbo Boost Technology 2.0 support depends on the CPU typeChipsetIntel Z270 ChipsetMémoire4 x DIMM, max. 64GB DDR4
4000+(OC)*/3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666(OC)*/2400(OC)*/2133  MHz, non-ECC, un-buffered memory Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.Emplacements d'extensionNew 7th Gen Intel Core Processors2 x PCIe 3.0 x16 slots (support x16, x8/x8)Intel Z270 Chipset1 x PCIe 3.0 x16 slot (max. at x4 mode)*3 x PCIe 3.0 x1 slots*The PCIe x4_3 slot shares bandwidth with PCIex1_3. The PCIe x4_3 is default set at x2 mode. VGAIntegrated Graphics Processor- Intel HD Graphics support Multi-VGA output support : HDMI/DisplayPort- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60Hz- Supports HDMI 1.4b with max. resolution 4096 x 2304 @ 24HzMaximum shared memory of 512MBSupport Multi-GPUSupports NVIDIA 2-Way/Quad-GPU SLI TechnologySupports AMD 3-Way/Quad-GPU CrossFireX TechnologyStockageIntel Z270 Chipset with RAID 0, 1, 5, 10, and Intel Rapid Storage Technology 14 support - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110(PCIe 3.0 x4 and SATA modes_M.2_1)* - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280(supports PCIe 3.0 x4 mode_M.2_2)** - 6 x SATA 6Gb/s ports  - Intel Optane Memory Ready*** - Supports Intel Smart Response Technology***** When the M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled.**When the M.2_2 Socket 3 is operatin in PCIe 3.0 x4 mode, SATA ports 5 and 6 will be disabled.***Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your  motherboard drivers and BIOS to the latest version from ASUS support website.**** This function will work depending on the CPU installed.LANIntel I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)Anti-surge LANGuard (On-Board)ROG GameFirst IV Sans fil et BluetoothWi-Fi with MU-MIMO 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHzUp to 867Mbps transfer speedBluetooth v4.1AudioROG SupremeFX S1220 8-Channel High Definition Audio CODEC - Supports up to 32-Bit/192kHz playback* - Impedance sense front and rear panel headphone outputs- High quality 120dB SNR stereo playback output and 110dB SNR recording input - ES9023P High Definition DAC - SupremeFX Shielding Technology - Jack-detection, Multi-streaming, and Front Panel Jack-retasking - Optical S/PDIF out port at back panelAudio Features: - Sonic Studio III - Sonic Radar III*Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio USBIntel Z270 Chipset - supports ASUS USB 3.1 Boost: - 6 x USB 3.0 ports ( 4 ports at back panel [blue], 2 ports at mid-board [grey]) - 6 x USB 2.0 ports ( 4 ports at back panel [black], 2 ports at mid-board [black])*ASMedia USB 3.1 controller - supports ASUS USB 3.1 Boost:  - 1 x USB 3.1 front panel connector  - 2 x USB 3.1 ports (1 Type-A [red] and 1 Type-C [black] at back panel)* 2 x USB2.0 port at mid-board share with ROG extension (ROG_EXT) port. Fonctions exclusives de ROGExtreme Engine Digi+  - MicroFine Alloy Choke  - NexFET MOSFETs   - 10K Black Metallic CapacitorsROG RGB ArmorROG Aura - Aura effects (LOGO + ROG Armor RGB lighting) - 2 x Aura RGB strip headersStart ButtonReset ButtonSafe Boot ButtonRetry ButtonBIOS Flashback ButtonClear CMOS ButtonMemOK! ButtonLN2 ModeROG RAMDiskROG CloneDriveROG RAMCache IIKeyBot II - X.M.P. - Clr CMOS - Power OnUEFI BIOS features : - Extreme Tweaker - Tweakers' Paradise - ROG SSD Secure Erase - GPU.DIMM Post - O.C. Profile - Graphics Card Information PreviewCaractéristiques spécialesASUS Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, and Turbo AppASUS Exclusive Features - AI Suite 3ASUS EZ DIY - USB BIOS Flashback - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - MemOK!ASUS Q-Design - Q-Code - Q-Shield - Q-Connector - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device LED [ yellow green]) - Q-DIMM - SafeSlotPanneau arrière I/O1 x Clear CMOS Button1 x BIOS Flashback Button1 x Wi-Fi Module1 x HDMI 1.4b 1 x DisplayPort 1.24 x USB 2.0 ports [black]4 x USB 3.0 ports [blue]1 x Anti-surge LAN (RJ45) port2 x USB 3.1 ports (1 x Type-A [red] and 1 x Type-C [black])1 x Optical S/PDIF out5 x Gold-plated audio jacksConnecteurs internes I/O1 x USB 3.1 front panel connector1 x USB 3.0 header supports additional 2 USB 3.0 ports1 x USB 2.0 header supports additional 2 USB 2.0 ports [ via ROG_EXT header]6 x SATA 6Gb/s ports 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIe 3.0 mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIe 3.0 mode)1 x ROG extension (ROG_EXT) header1 x 4-Pin CPU fan connector1 x 4-Pin CPU_OPT fan connector3 x 4-Pin Chassis fan connectors1 x EXT_Fan header1 x 4-Pin W_PUMP+ connector1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x 4-Pin AIO_PUMP connector1 x H_AMP fan connector1 x Thermal sensor connector1 x 24-pin EATX power connector1 x 8-pin EATX 12V power connector1 x Start button1 x Reset button1 x Safe Boot button1 x Retry button1 x LN2 mode jumper1 x Slow mode switch1 x MemOK! Button1 x Front panel audio connector (AAFP)1 x TPM connector1 x System panel connectorAccessoiresUser guide1 x 2T2R dual-band Wi-Fi moving antennas1 x 10-in-1 ROG cable label1 x CPU Installation Tool1 x Extension Cable for RGB Strips (80cm)1 x I/O Shield1 x M.2 bracket1 x M.2 Screw Package1 x Q-Connector1 x ROG Coaster1 x ROG sticker1 x SLI HB Bridge (2-WAY-M)2 x SATA 6Gb/s cablesSupport DVDBIOS1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.GestionWfM2.0, DMI3.0, WOL by PME, PXESoftwareDriversROG GameFirst IV ROG RAMDiskROG RAMCache IIROG CPU-ZROG Mem TweakItOverwolfROG Keybot IICloneDriveKaspersky Anti-VirusDAEMON Tools ProASUS WebStorageSonic Studio IIISonic Radar IIIRAMDiskAURAWinZipASUS UtilitiesPrise en charge du système d'exploitationWindows 10 64-bitWindows 8.1 64-bit*Windows 7* *Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors FormatATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
