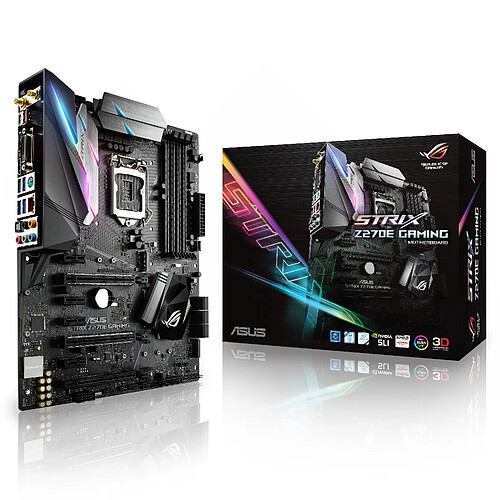

ASUS Intel Z270 GAMING · Reconditionné

CPUIntel Socket 1151 for 7th / 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports 14nm CPUSupports Intel Turbo Boost Technology 2.0** The support of these features depends on the CPU types.** Refer to www.asus.com for Intel CPU support list.ChipsetIntel Z270 ChipsetMémoire4 x DIMM, max. 64GB DDR4
3866(OC)*/3733(OC)*/3600(OC)*/3466(OC)*/3400(OC)*/3333(OC)*/3300(OC)*/3200(OC)*/3000(OC)*/2800(OC)*/2666(OC)*/2400(OC)*/2133 MHzDual channel memory architectureSupports Intel Extreme Memory Profile (XMP)** Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL(Qualified Vendors List) for details.Emplacements d'extension2 x PCIe 3.0/2.0 x16 slots (supports x16, x8/x8)1 x PCIe 3.0/2.0 x16 slot (max. at x4 mode)4 x PCIe 3.0/2.0 x1 slotVGAIntegrated Graphics Processor- Intel HD Graphics supportMulti-VGA output support: DisplayPort/HDMI/DVI-D portsSupports DisplayPort 1.2* with max. resolution 4096 x 2304@60HzSupports HDMI 1.4b with max. resolution 4096 x 2160@24HzSupports DVI-D with max. resolution 1920 x 1200@60Hz Supports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 1024MB* DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays Support Multi-GPUSupports NVIDIA 2-Way SLI TechnologySupports AMD 3-Way CrossFireX TechnologyStockageIntel Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support - 6 x SATA 6Gb/s ports - 1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x 4 mode)* - 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)**- Ready for Intel Optane Memory*** - Supports Intel Smart Response Technology***** The M.2_1 socket shares SATA_1 port when use M.2 SATA mode device. Adjust BIOS settings to use a SATA device.** The M.2_2 socket shares SATA_56 ports when use M.2 PCIE mode device in X4 mode. Adjust BIOS settings to use SATA devices.*** Intel Optane Technology only supported when using 7th Generation Intel Processors. Before using Intel Optane memory modules, ensure that you have updated your  motherboard drivers and BIOS to the latest version from ASUS support website.**** These functions will work depending on the CPU installed.LANIntel I219-V Gigabit LAN- Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)Anti-surge LANGuardROG GameFirst TechnologySans fil et BluetoothWi-Fi 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz with MU-MIMO supportBluetooth v4.1, 4.0LE, 3.0+HSAudioROG SupremeFX S1220A 8-Channel High Definition Audio CODEC- Supports up to 32-Bit/192kHz playback*- Impedance sense for front and rear headphone outputs- High quality 120dB SNR stereo playback output and 113dB SNR recording input - SupremeFX Shielding Technology - Dual Headphone Amplifiers - Jack-detection, Multi-streaming, and Front Panel Jack-retasking - Optical S/PDIF out port at back panelAudio Features: - Sonic Radar III - Sonic Studio III *Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio USBIntel Z270 Chipset*-  - 6 x USB 3.0 ports ( 4 ports at back panel [blue], 2 ports at mid-board) - 6 x USB 2.0 ports ** 2 x USB2.0 port at mid-board shares with ROG extension (ROG_EXT) port.ASMedia USB 3.1 controller* - 1 x USB 3.1 front panel connector** - 2 x USB 3.1 ports (1 x Type-A [red] and 1 x Type-C ports at back panel)* Supports 3A power output** The USB 3.1 front panel connector shares bandwidth with PCIE_x1_2 and PCIE_x1_4. If the USB 3.1 front header is connected, PCIE_x1_2 and PCIE_x1_4 will be

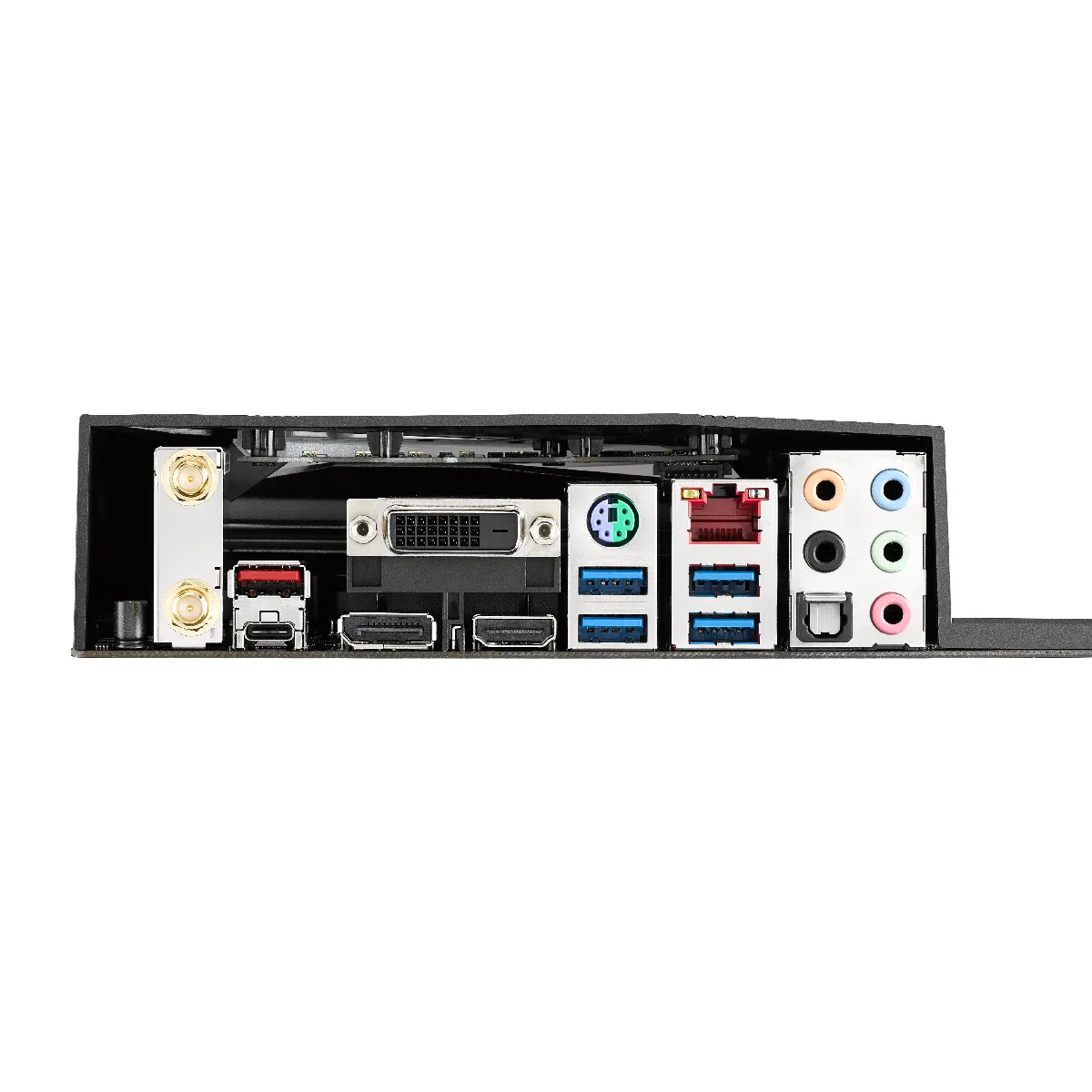

disabled.Fonctions exclusives de ROGROG RAMCache IIROGGameFirst TechnologyROG CPU-ZROG OverwolfROG ClonedriveCaractéristiques spécialesPerformance Optimization  5-Way Optimization - Whole system optimization with a single click! Perfectly consolidates better CPU performance, power saving, digital power control, system cooling and app usages.    DIGI+ Power Control    - Digi+VRM    EPU    - EPU    TPU   - Auto Tuning, TurboV, GPU Boost   Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling controlASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3ASUS Q-Design - Q-Shield - Q-LED (CPU, DRAM, VGA, Boot Device LED) - Q-Slot - Q-DIMMGamer's Guardian - SafeSlot - DIGI+ VRM - DRAM Overcurrent Protection - ESD Guards on VGA, LAN, Audio, KBMS and USB3.0/2.0 ports - Highly Durable Components - Stainless Steel Back I/OASUS Exclusive Features- AURA Lighting Control- 3D Printing Friendly design - AI Suite 3  - AI ChargerPanneau arrière I/O1 x ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.1)2 x USB3.1 ports (1 x Type-A [red] and 1 x Type-C ports at back panel)1 x DVI port1 x HDMI port1 x DP port1 x PS/2 keyboard/mouse combo port4 x USB 3.0 ports [blue]1 x Anti-surge LAN (RJ45) port5 x Audio jacks1 x Optical S/PDIF outConnecteurs internes I/O1 x USB 3.1 front panel connector1 x USB 3.0 connectors support additional 2 x USB 3.0 ports3 x USB 2.0 connectors support additional 6 x USB 2.0 ports [one connector via ROG_EXT header]6 x SATA 6Gb/s connectors1 x ROG extension (ROG_EXT) header1 x 4-Pin H_AMP_FAN connector1 x 4-Pin AIO_PUMP fan connector1 x 4-Pin CPU fan connector1 x 4-Pin CPU_OPT fan connector2 x 4-Pin Chassis fan connectors1 x 5-Pin Extension fan connector1 x 24-pin EATX power connector1 x 8-pin EATX 12V power connector1 x M.2_1 Socket 3 for M Key, type 2242/2260/2280/22110 storage devices support ( Support PCIE and SATA modes)1 x M.2_2 Socket 3 for M Key, type 2242/2260/2280 storage devices support ( Support PCIE mode only)1 x Front panel audio connector (AAFP)1 x COM connector2 x RGB Headers1 x TPM connector1 x System panel connector1 x Thermal sensor connector1 x CPU_OV1 x Clear CMOS jumper (2-pin)AccessoiresUser guideSupport DVDI/O Shield4 x SATA 6Gb/s cables1 x SLI HB BRIDGE  (2-WAY-M)1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)1 x RGB LED extension cable1 x CPU Installation tool1 x ROG cable label1 x ROG Strix sticker1 x 3D Printing Mount1 x M.2 Screw Package1 x ROG CoasterBIOS128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information.GestionWfM2.0, DMI3.0, WOL by PME, PXESupport DVDDriversASUS UtilitiesEZ Update Anti-virus software (OEM version)Prise en charge du système d'exploitationWindows 10 64-bitWindows 8.1 64-bit*Windows 7**Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel Processors.FormatATX Form Factor, 12”x 9.6” (30.5cm x 24.4cm)
