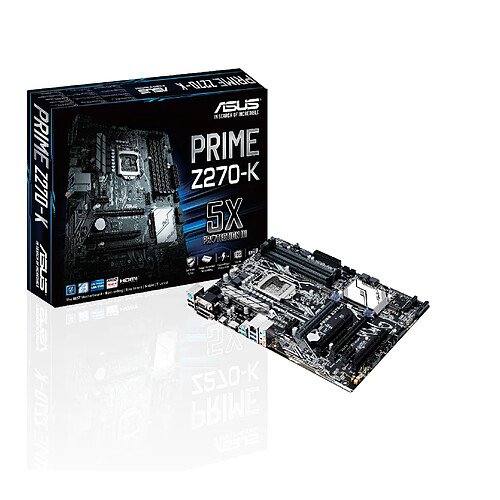

ASUS Z270 PRIME · Reconditionné

CPULGA1151 socket for 7th/6th Generation Intel Core i7/ i5/ i3/Pentium/Celeron ProcessorsSupports 14nm CPUSupports Intel Turbo Boost Technology 2.0** The Intel Turbo Boost Technology 2.0 support depends on the CPU types.** Refer to www.asus.com for Intel CPU support list.ChipsetIntel Z270 ChipsetMémoire4 x DIMM, max. 64GB DDR4
3866(O.C.)*/3733(O.C.)*/3600(O.C.)*/3466(O.C.)*/3400(O.C.)*/3333(O.C.)*/3300(O.C.)*/3200(O.C.)*/3000(O.C.)*/2800(O.C.)*/2666(O.C.)*/2400(O.C.)*/2133 MHz Non-ECC, Un-buffered Memory Dual channel memory architectureSupports Intel Extreme Memory Profile (XMP)*The maximum memory frequency supported varies by processor**Refer to www.asus.com for the Memory QVL (Qualified Vendors List).Emplacements d'extension1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)1 x PCI Express 3.0/2.0 x16 slot (max. at x4 mode, compatible with PCIe x1, x2 and x4 devices)2 x PCI Express 3.0/2.0 x1 slots2 x PCI slotsSupport Multi-GPUSupports AMD CrossFireX TechnologyVGAIntegrated Graphics Processor- Intel HD Graphics supportMulti-VGA output support: HDMI/DVI-D/RGB port - Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz - Supports DVI-D with max. resolution of 1920 x 1200 @60Hz - Supports RGB with max. resolution 1920 x 1200@60HzSupports Intel InTru 3D/Quick Sync Video/Clear Video HD Technology/InsiderSupports up to 3 displays simultaneouslyMaximum shared memory of 1024 MB (for iGPU exclusively)StockageIntel Z270 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology 15 support - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)* - 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)** - 6 x SATA 6.0 Gb/s ports (gray) - Intel Optane  Memory Ready*** - Supports Intel Smart Response Technology***** When a device in SATA mode is installed on the M.2_1 socket, SATA_1 port cannot be used.** When a device is installed on the M.2_2 socket, SATA_5/6 ports cannot be used.*** Intel Optane Technology is only supported when using 7th Generation Intel processors. Before using Intel Optane memory modules, ensure that you have updated your motherboard drivers and BIOS to the latest version from ASUS support website.**** These functions will work depending on the CPU installed.LANIntel I219-V Gigabit LAN - Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)AudioRealtek ALC887 8-channel* high definition audio CODEC - LED-illuminated designBrighten up your build with the gorgeous illuminated audio trace path. - Audio Shielding: Ensures precision analog/digital separation and greatly reduces multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity. - Supports jack-detection and front panel jack-retasking* Choose the chassis with HD audio module in front panel to support 8-channel audio output.USBASMedia USB 3.1 controllers - 2 x 10Gb/s USB 3.1/3.0/2.0 port at rear panel (teal blue, Type A)Intel Z270 Chipset - 1 x 5Gb/s USB Type C port (@back panel), supports 3A power output - 6 x USB 3.0/2.0 ports (4 ports @mid-board; 2 ports @back panel, blue, Type A) - 6 x USB 2.0/1.1 ports (4 ports @mid-board; 2 ports @back panel)Fonctions spéciales ASUSASUS 5X PROTECTION III - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 7 Phase digital power designSuperb PerformanceM.2 onboard - The latest transfer technologies with up to 32Gb/s data transfer speedsASUS Fan Xpert 4 Core - Advanced fan and liquid controls for ultimate cooling and quietnessASUS EPU - EPUUEFI BIOS - Most advanced options with fast response timeGaming ScenarioAudio Features  - Audio that roars on the battlefieldASUS Exclusive Features - ASUS Ai Charger - ASUS AI Suite 3EZ DIYUEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS O.C. Tuner - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3Q-Design - ASUS Q-Shield - ASUS Q-DIMM - ASUS Q-SlotSolution thermique silencieuse ASUSQuiet Thermal Design: - ASUS ASUS Fan Xpert 4 Core - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink  solutionCaractéristiques exclusives d'overclocking ASUSPrecision Tweaker 2: - vCore: Adjustable CPU Core voltage at 0.005V increment - iGPU: Adjustable CPU Graphics voltage at 0.005V increment - vCCIO: Adjustable Analog and Digital I/O voltage at 0.005V increment - vCCSA: Adjustable CPU System Agent voltage at 0.1V increment - vDRAM Bus: 160-step Memory voltage control - vPCH: 3-step Chipset voltage controlSFS (Stepless Frequency Selection) - BCLK/PCIE frequency tuning from 98MHz up to 538MHz at 0.1MHz incrementOverclocking Protection: - ASUS C.P.R.(CPU Parameter Recall)Panneau arrière I/O1 x PS/2 keyboard/mouse combo port1 x HDMI port1 x DVI-D port1 x RGB port1 x LAN (RJ45) ports2 x 10Gb/s USB 3.1/3.0/2.0 ports (teal blue, Type A)1 x 5Gb/s USB Type C port2 x USB 3.0/2.0 ports ( blue, Type A)2 x USB 2.0/1.1 ports3-Jack 8-Channel Audio I/O portsConnecteurs internes I/O2 x USB 3.0/2.0 connectors support additional 4 USB ports (19-pin)2 x USB 2.0/1/1 connectors support additional 4 USB ports6 x SATA 6.0 Gb/s connectors (gray)2 x M.2 Socket 3 (for M Key)1 x 4-pin CPU Fan connector for both 3-pin (DC mode) and 4-pin (PWM mode) CPU coolers control*2 x 4-pin Chassis Fan connectors for 3-pin (DC mode) and 4-pin (PWM mode) coolers control*1 x PUMP FAN Header1 x Front panel audio connector (AAFP)1 x System panel connector1 x S/PDIF out header1 x 24-pin EATX Power connector1 x 8-pin EATX 12V Power connector1 x COM header1 x Clear CMOS jumper* By default, the CPU/Chassis Q-Fan control setting is set to Auto mode, which detects the CPU and chassis fans installed and changes the control mode automatically.BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen,  and ASUS DRAM SPD (Serial Presence Detect) memory informationGestionWfM 2.0, DMI 3.0, WOL by PME, PXEAccessoires2 x Serial ATA 6.0Gb/s cables1 x ASUS Q-Shield2 x M.2 screws1 x Support DVD1 x User's manualSupport DVDDriversASUS UtilitiesASUS EZ Update Anti-virus software (OEM version)Prise en charge du système d'exploitationWindows 10 (64-bit)Windows 8.1 (64-bit)*Windows 7 (64-bit/32-bit)**Windows 8.1 64-bit and Windows 7 32/64-bit are only supported when using 6th Generation Intel ProcessorsFormatATX form factor: 12.0 in. x 8.9 in. (30.5 cm x 22.6cm)
